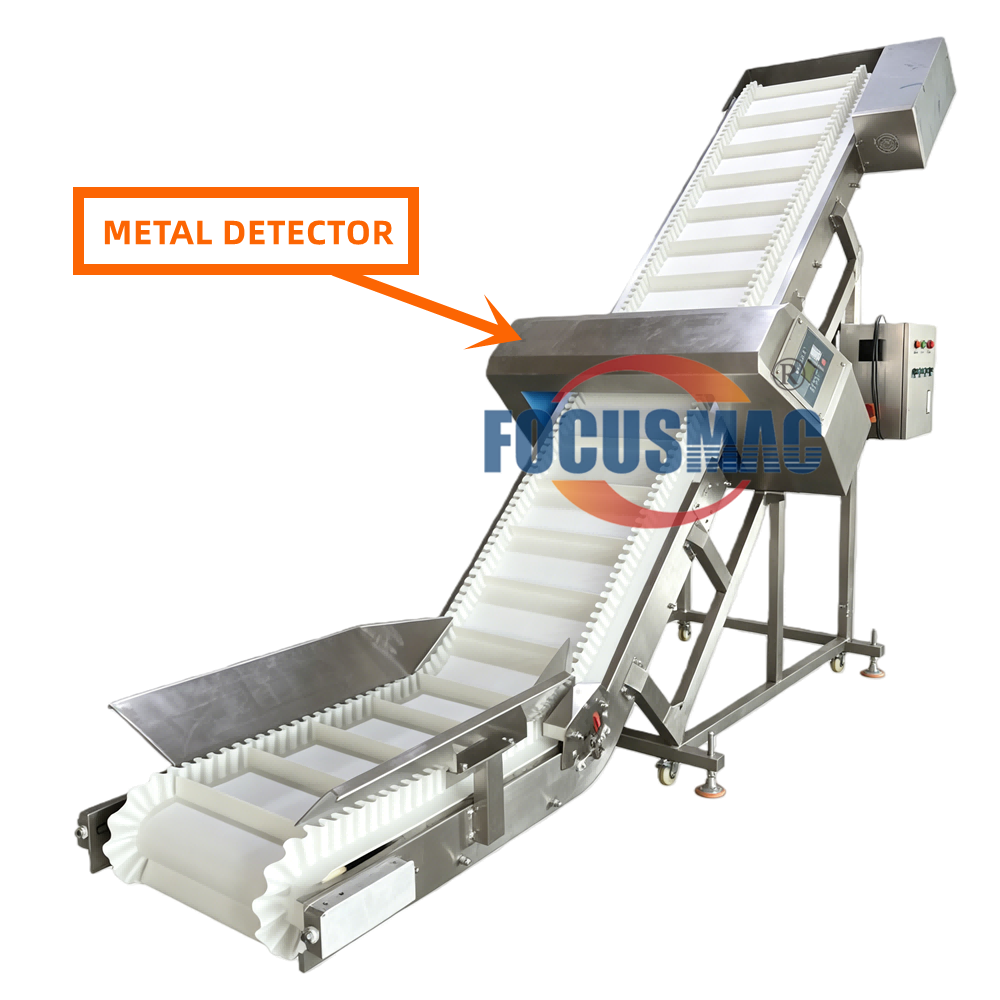

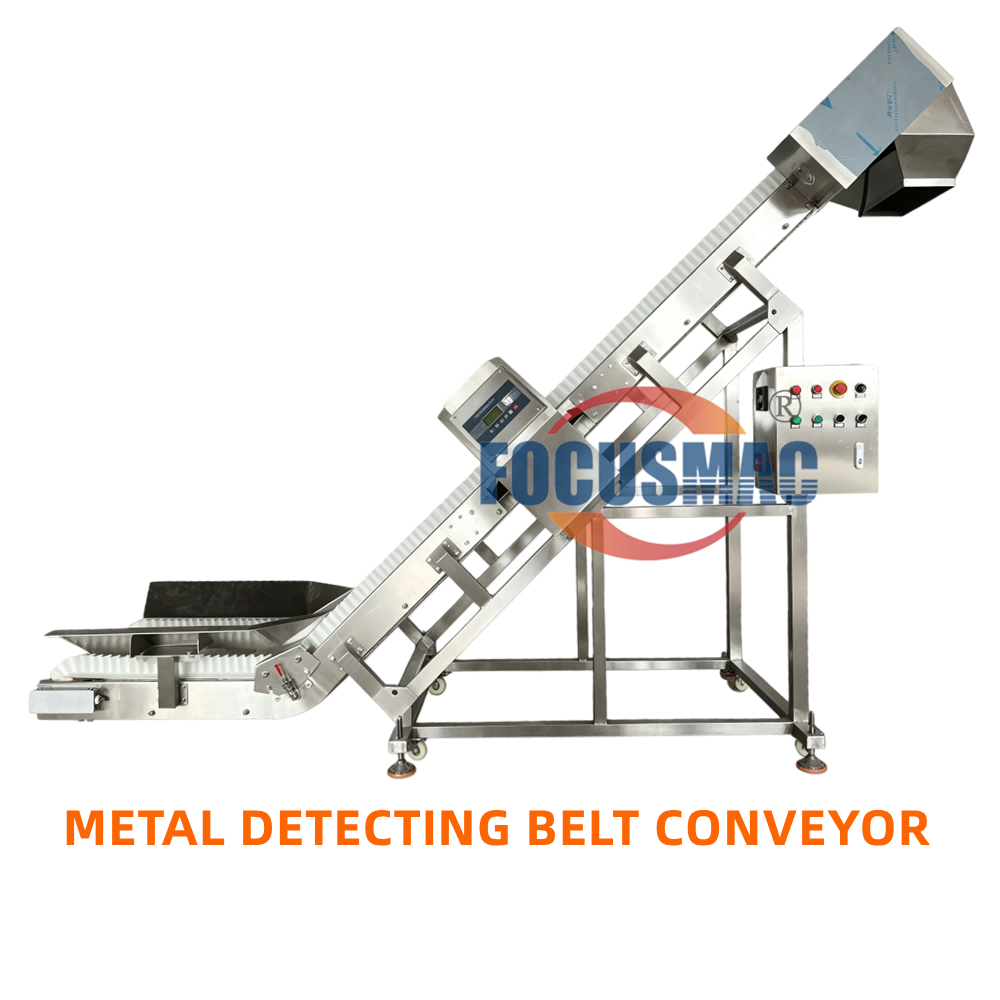

Metal Detecting Belt Conveyor for Food Industrial

Hot Product

Metal Detecting Belt Conveyor for Food Industrial

The metal detecting belt conveyors are indispensable assets in ensuring product safety, maintaining quality standards, and optimizing operational efficiency in both food and recycling plants.

Metal Detecting Belt Conveyor for Food Industrial

Introduction:

This metal detector conveyor is conveying the material of both food and non-food to the top size from the bottom size. Just like meat, snack, waste plastic piece...The conveyor can be customized and make it work with your factory site.

Features:

Metal fragments like broken blades or screws entering food products cause recalls, brand damage, and penalties. Manual inspection is slow and unreliable. This food grade inclined metal detector conveyor inspects processed food items on steep inclines, detecting and rejecting hazardous metallic foreign bodies inline to protect consumers and slash labor costs.

1. High Sensitivity Detection for Food Safety:

Equipped with a food-grade digital metal detection tunnel, the conveyor identifies ferrous, non-ferrous, and stainless steel particles inside processed food. High sensitivity ensures compliance with safety standards, preventing contaminated batches from reaching retail shelves.

2. Steep Incline Transport Saves Floor Space:

Combining an incline conveyor with metal detection allows food plants to elevate products directly into high weighing or packaging hoppers. The steep incline saves valuable floor space compared to long horizontal lines.

3. Automatic Reject System Slashes Labor Costs:

When metal contaminants are detected, the system triggers an automatic reject device to isolate contaminated items without stopping line flow. This replaces manual checks, cutting quality inspection labor across every shift.

4. Food Grade Sanitary Washdown Construction:

Built with food-safe belting and a 304 stainless steel frame, the conveyor withstands daily washdowns, hot water sanitization, and chemical cleaners. Smooth welds prevent bacterial harboring in hygiene-critical plants.

5. OEM Custom Incline Angle and Belt Width:

Tunnel aperture, belt width, cleat profile, incline angle, discharge height, and reject devices are custom built to your line. Send your packaging specs and detection targets for a confirmed quote.

Technical Parameters:

Model	Conveyor with metal detector
Machine Frame	Carbon steel, 304/316 stainless steel
Belt Materials	PU/PVC/PP
Belt Width	100mm or customized.
Machine Height	3520mm or customized.
Production Capacity	4-6.5m3/H
Speed	Adjustable
Voltage	220V/380V, 50HZ/60HZ, 0.75KW
Detectability	Fe≥φ0.8 mm NOfe≥φ1.0mm Sus304≥φ1.5mm-2.0mm
