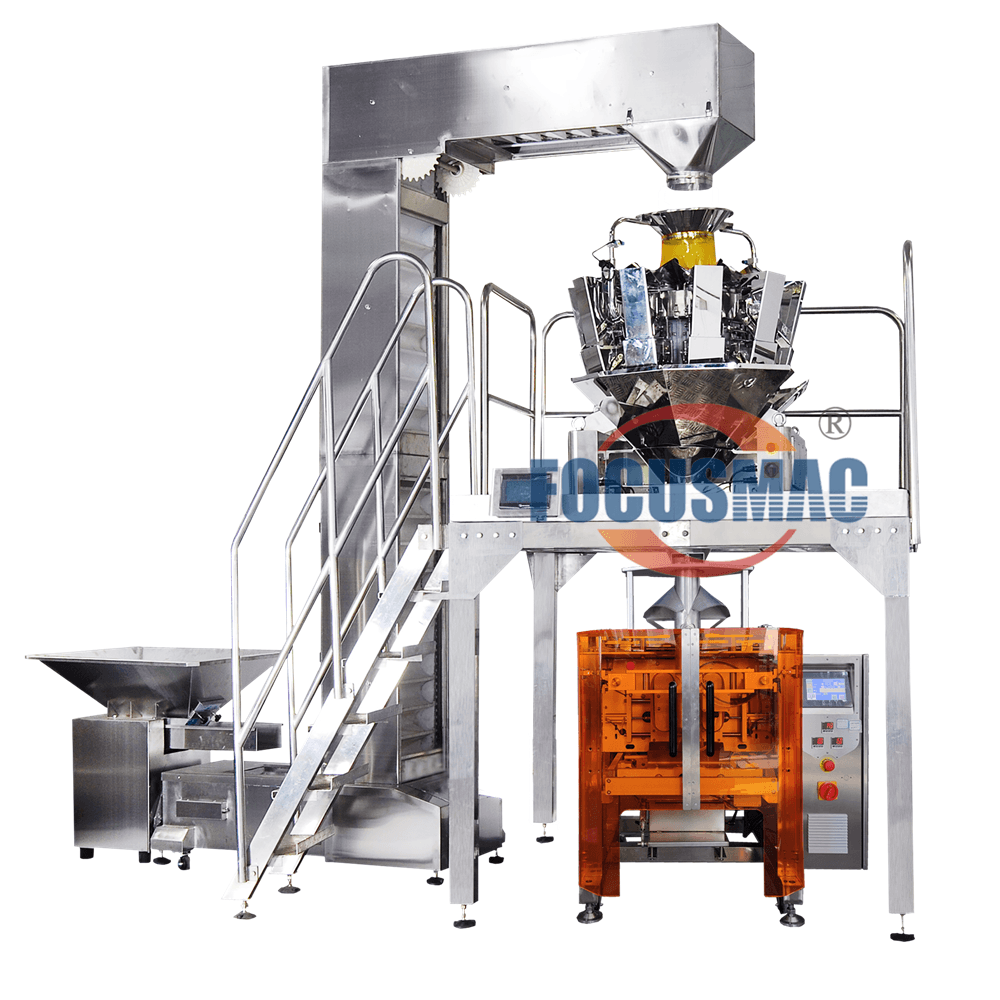

VIP6 Herb Cinnamon Packing Machine
Advantages:
* Compact size allows more flexible applications and saves room.
* Double-belt for film transportation, working smoothly and quickly.

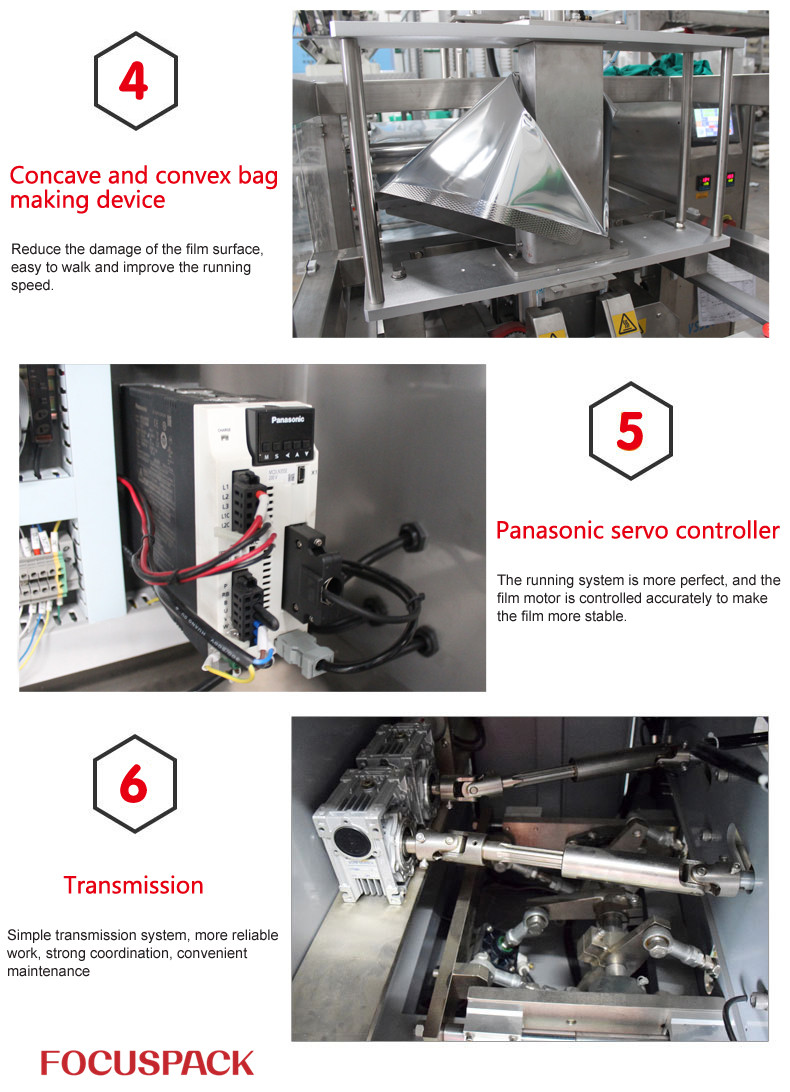

* Film pulling system controlled by servo motor.
* Large range of film width up to 600mm.
* Make gusset bags and hanging hole bags according to customer’s requirements
* Product name: Herb cinnamon packing machine
Technical Parameters:
| Model | VIP6 |
| Packing speed | 5-60 bags/min (determined by actual products) |
| Film width | 200-600mm |
| Films | Laminated film, PE film |
| Bag style | Pillow bag, flat bottom gusset bag |
| Bag width | 90-290mm |
| Bag length | 90-300mm, max.600mm with twice pulling |
| Vertical seal width | 8-20mm |
| Power | 2.5kw, 220v, 50Hz |
| Air consumption | 0.4m3/min, 0.6MPa |
| Dimensions | 1380*1100*1400mm |
| Construction | Frame, electric cabinet and food contact parts are made of SUS304 |
| Options | Euro hole punch/ round hole punch device Chain bag device Tear notch device Bag support Gusset device Gas flush Bag deflector Printer |

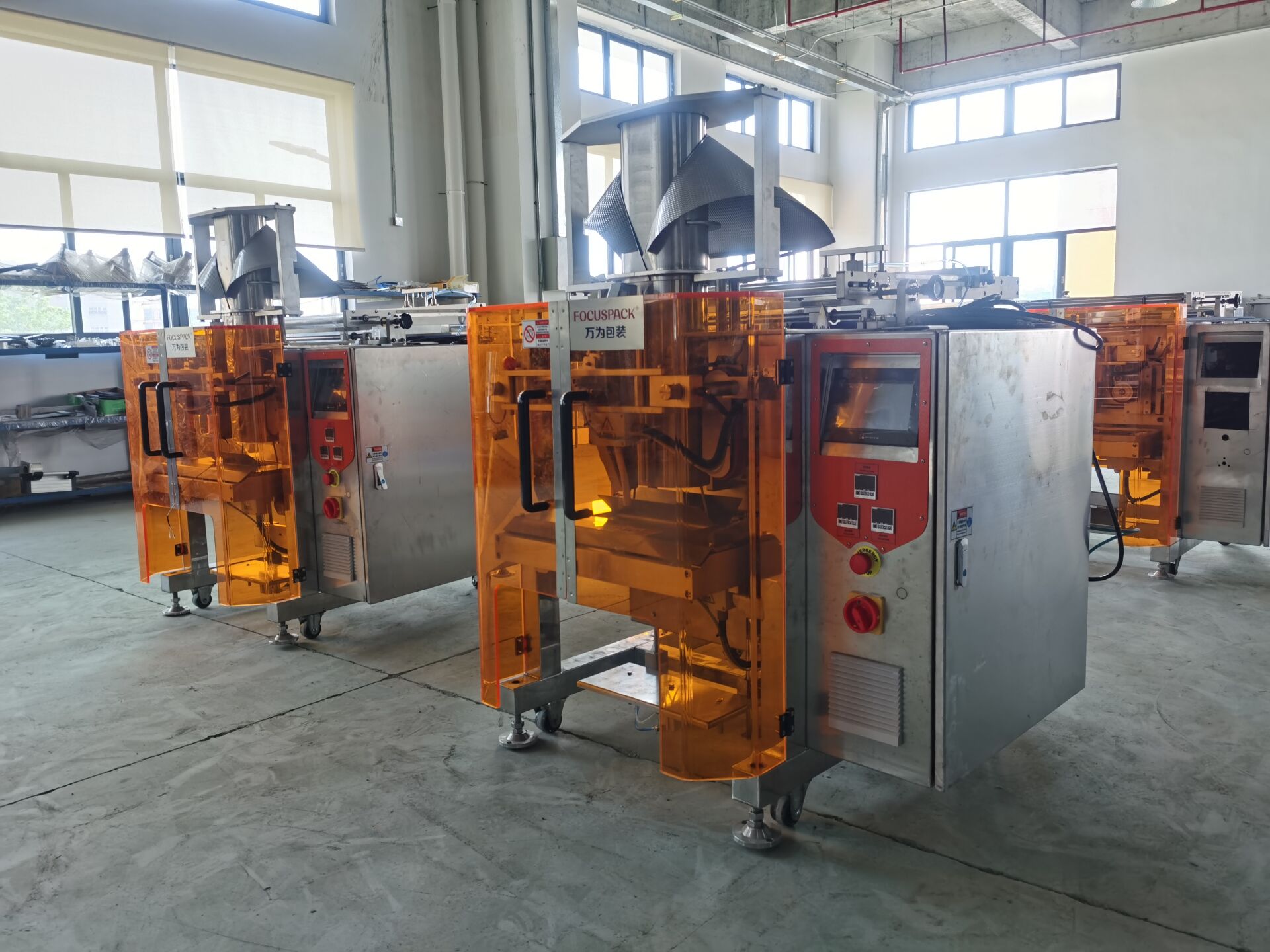

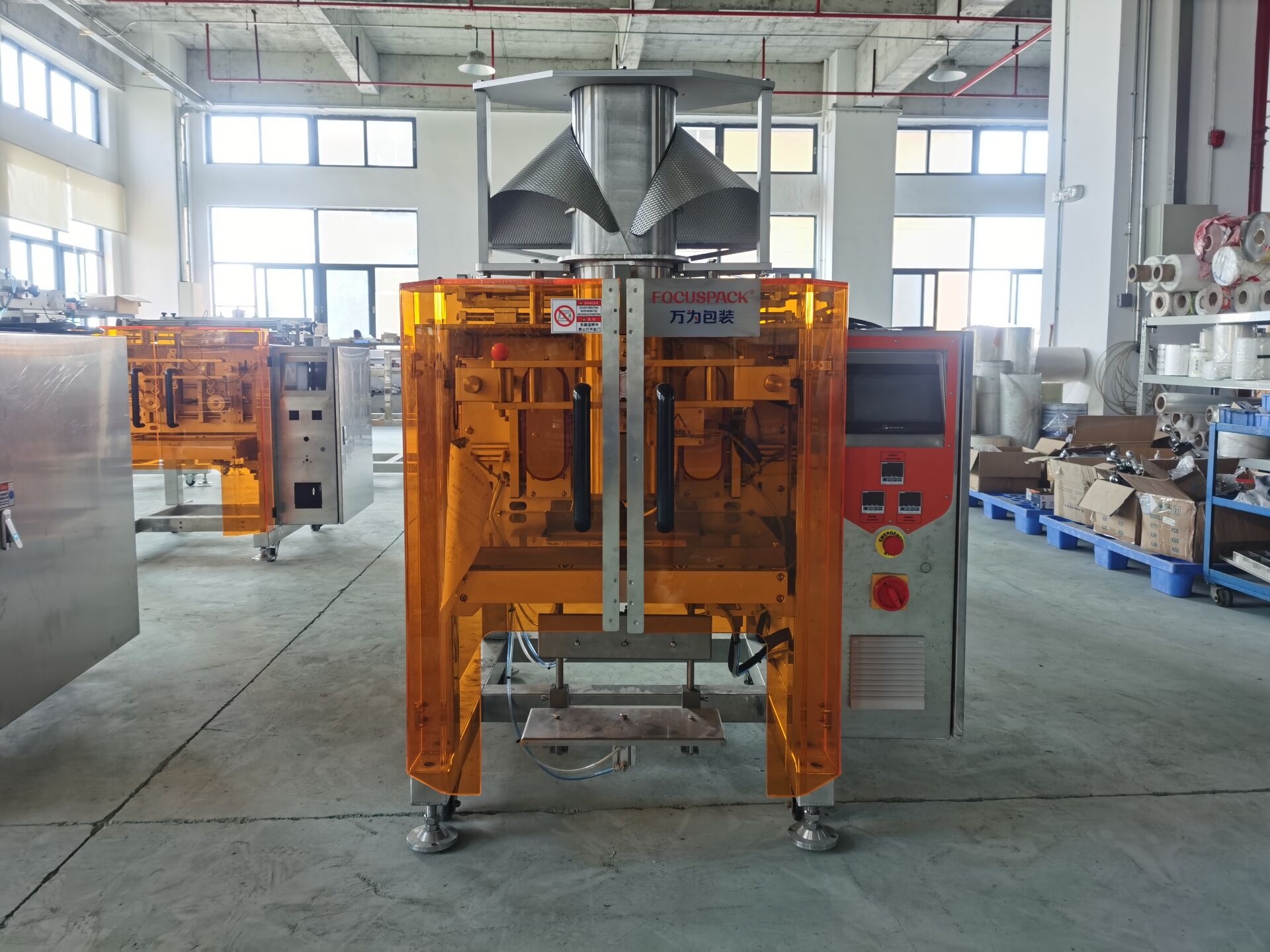

Real Shots:
Scope of application
Sample bag

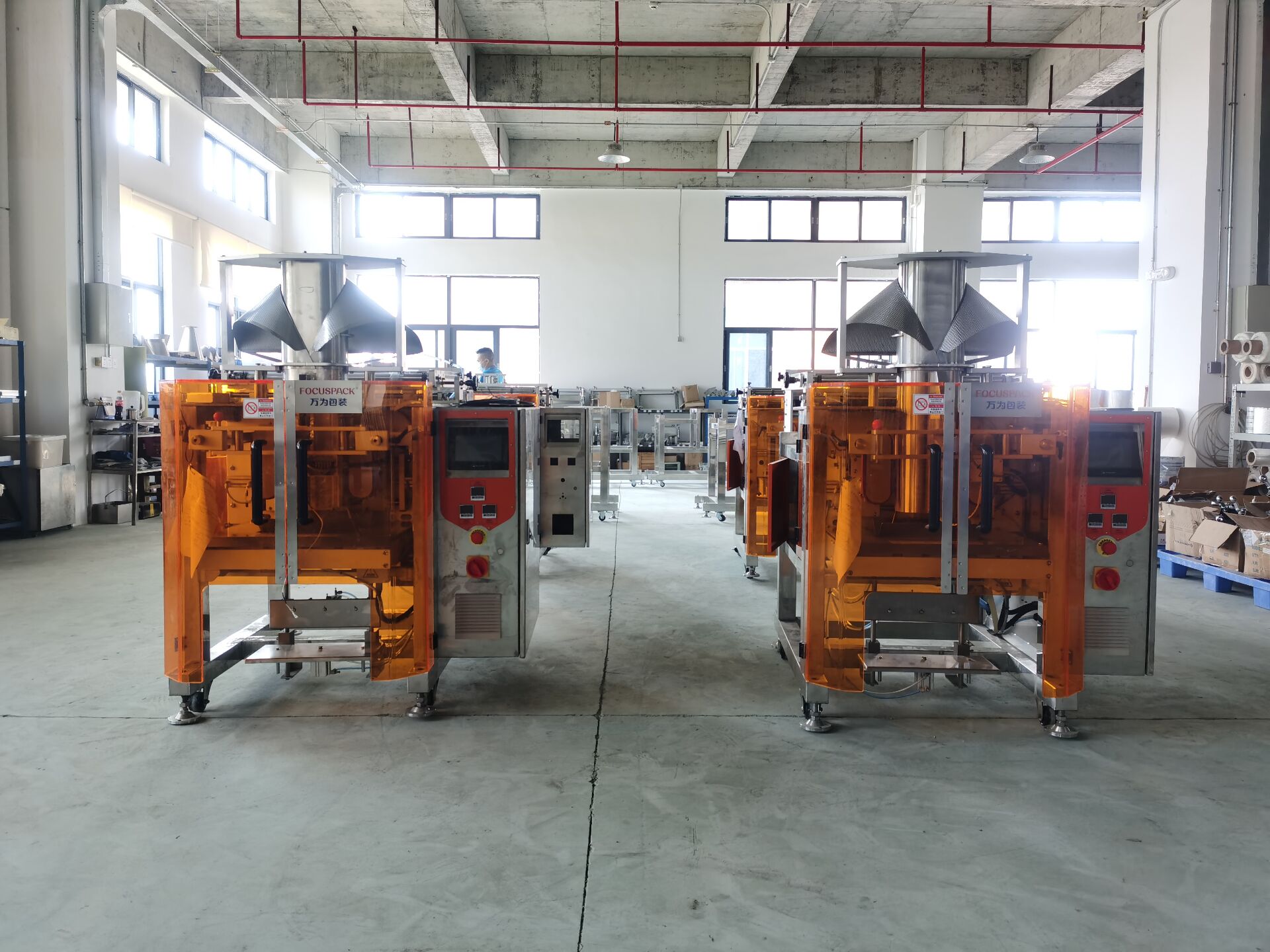

Production workshop
Certificate
