Metal Detectable Bucket Elevator for Food Manufacturer Plant


The Metal Detectable Bucket Elevator. These special buckets incorporate a fine iron matrix into the poly substrate while maintaining the FDA approval standard. So if any piece ends up in the product, it can be detected and removed prior to final packaging.



Metal Detectable Bucket Elevator

Introduction:

The use of our metal detectable poly buckets is a very cost effective alternative to stainless steel buckets. Poly buckets are often used for food and specialty products. However, in the unlikely event that a piece of the bucket is broken off, our standard bucket material will not be picked up by metal detectors.
Metal detectable buckets option on a bucket elevator. These special buckets incorporate a fine iron matrix into the poly substrate while maintaining the FDA approval standard. So if any piece ends up in the product, it can be detected and removed prior to final packaging.



Features:

  • The buckets are made of a food grade reinforced polypropylene mix with fine iron, molded in one piece and can handle temperatures from 10 to 60 degrees Fahrenheit. Can be detected by metal detector.
  • The Metal Detectable Bucket Elevator allow for controlled feeds at one or more locations and can easily interface with various types of feeding devices.
  • All parts have easy to remove inspection covers and a conveniently located inspection window. The buckets have a quick release mechanism to facilitate fast installation or removal of buckets. All elevators are equipped with an automatic chain tension device and built-in overload protection.

Optional parts:

  1. Machine frame: #304 / #316 stainless steel or carbon steel.
  2. Single or multiple discharges.
  3. Make as per client's requirements


Technical Parameters:
Model FM-3B3 Bucket elevator
Bucket Volume 1.8L/3.6L
Machine Structure Stainless steel or carbon steel
Production Capacity 6-8m³/h
Machine Height 3296mm for standard (1.8L)
Discharging Height 3256mm for standard (1.8L)
Bucket Material Reinforced polypropylene with fine iron
Packing Size 2050mmX1350mmX980mmfor standard (1.8L)
Voltage AC220V or three phase 380V, 50hz/60hz
Power Supply 0.75kw

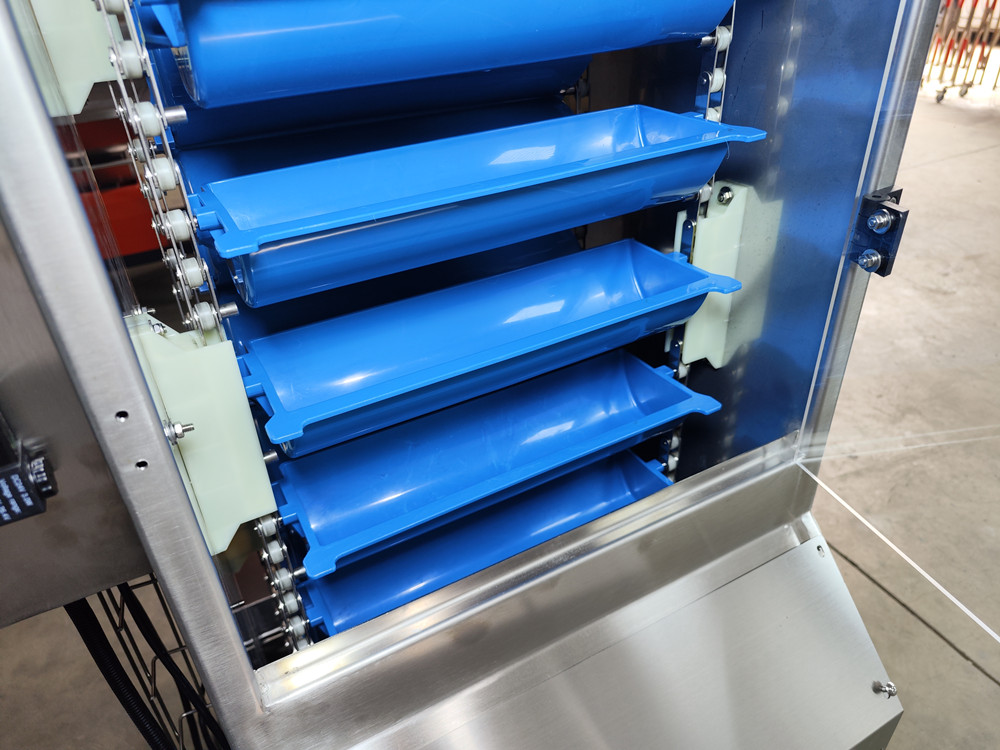

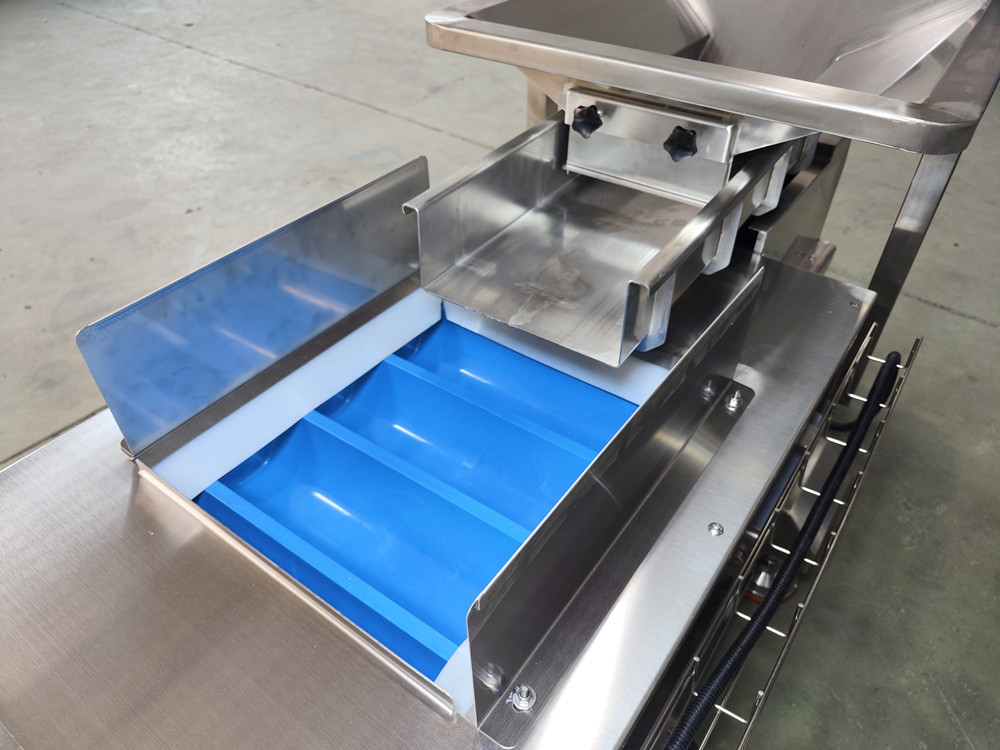

Real Shots:
