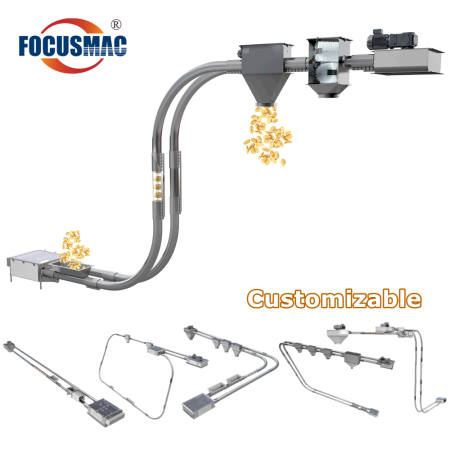

Tubular Drag Chain Conveyor Tube Chain Conveyor Tubular Cable Conveyor
Introduction:
Tube chain conveyor is a continuous conveying equipment for conveying powder, small particle and small block and other loose materials, which can be combined horizontal, inclined and vertical conveying. In the closed pipe, the chain plate is used as the transmission member to drive the material along the pipe. When conveying horizontally, the material particles are pushed by the chain in the direction of movement. When the internal friction between the material layers is greater than the external friction between the material and the tube wall, the material will move forward with the chain, forming a stable material flow; When vertical conveying, the material particles in the pipe are pushed upward by the chain piece, because the lower feeding stops the upper material from sliding, producing lateral pressure, so it enhances the internal friction of the material, when the internal friction between the material and the inner wall of the pipe friction and the material weight, the material is transported upward with the chain piece, forming a continuous material flow.
Application:
Fine chemical industry: pigments, dyes, coatings, carbon black, titanium dioxide, iron oxide, ceramic powder, heavy calcium, light calcium, bentonite, molecular sieve, kaolin, silica gel powder, activated carbon, etc.
Pesticide ores: urea, chlorination, ammonium bicarbonate, soda powder, solid pesticides, tungsten powder, pesticide additives, copper fine mineral powder, coal powder, phosphate powder, aluminum oxide powder and other building materials, mud, clay, clay, sand, quartz sand, clay powder, silica, limestone powder, dolomite powder, wood powder, glass fiber, silica, talc powder, etc.
Food industry: flour, starch, cereal, milk powder, food additives, etc.
